12V / 24V Truck Diagnostic Tool CAN OBD2 EOBD Scanner Search Information VIN CID CVN Code Query P U B C Clear Fault Code Car / Truck 2in Scanner RPM B

EAN:

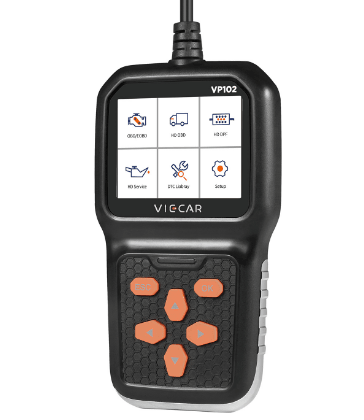

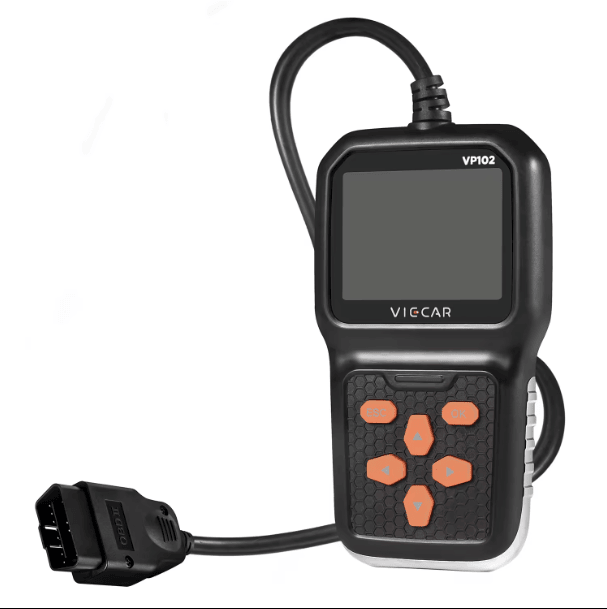

SKU: PSVP102 12V / 24V Truck Diagnostic Tool CAN OBD2 EOBD Scanner Search Information VIN CID CVN Code Query P U B C Clear Fault Code Car / Truck 2in Scanner RPM Bluetooth 5.0 Code reader Fuel system

technical parameter
Main control chip: STM32F103VET6
Display screen: 2.8-inch TFT
Software platform: Support window
Operating voltage: 8~36V
Operating current: 50 mA
Standby current: 5 mA
Operating environment: -20-65℃
Storage temperature: -30-80℃

product description:
VP102 is a professional protocol that supports commonly used trucks, such as SAE J1939 / ISO 1708, and is also compatible with the CAN OBD2 / EOBD standard protocol commonly used in cars. At present, the models are compatible with the most complete and fastest OBD solution. When it comes to engine problems, accurate judgment provides useful information, and it quickly and effectively solves the fault problems on today's vehicles.
Breaking the conventional car OBD reading card concept, from a new definition, it also has a 2.8-inch TFT color screen and functions for I / M preparation testing, has a stylish appearance, creates a first-class material feel, is not a simple car
reading code Card fault detector is the perfect tool that mechanics can't wait for.

functional characteristics:
1. Support common standard protocol J1939 / ISO1708 for trucks
2. Support vehicle fault diagnosis, real-time data flow and other OBD functions
3. With data waveform display, data storage and playback functions
4. Data with I / M emission detection
5.2.8 inch color LCD screen display, reaching 240RGB * 320 resolution
6. Strong reliability, wide supply voltage range 8 ~ 36V, with stronger overcurrent and overvoltage protection functions
7. Advantages: 2-in-1 scanner for car / truck; fault code query (P, U, B, C) support software upgrade; retrieve vehicle information (VIN, CID and CVN)...
8. Support for English, French and Spanish
Product certification: CE FCC RoHS

Support vehicle data
Read error diagnosis code
Clear fault code (clear error code and turn off MIL)
Engine speed per minute (RPM)
Calculated load value
Coolant temperature
Fuel system status
Speed
Short-term fuel situation
Long-term fuel situation
Intake manifold pressure
Fuel injection lead time
Inlet air temperature
Air flow rate
Absolute throttle position
Oxygen detection voltage associated with short-term fuel state
Fuel pressure
Fuel consumption monitoring, etc.

Support agreement
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
10. SAEJ1939
11. ISO1708 / J1587

outline dimension:cm
Package size: 26x18x8 cm
Product weight: 0.7kg
Package weight: 0.79kg
Quantity quantity: 15 pcs
